There is a LED display and various communication lamps on the device to realize observation of device running status, communication status and contamination.
Due to no-motor diffraction technology, there is no maintenance or replacement for the motor, greatly simplifying maintenance.
Can use cellphone or computer to connect to N3/E3 WiFi to realize parameter setting, measurement result reading, calibration, etc.
Thanks to temperature compensation technology, the measurement result will not be subjected to temperature change.

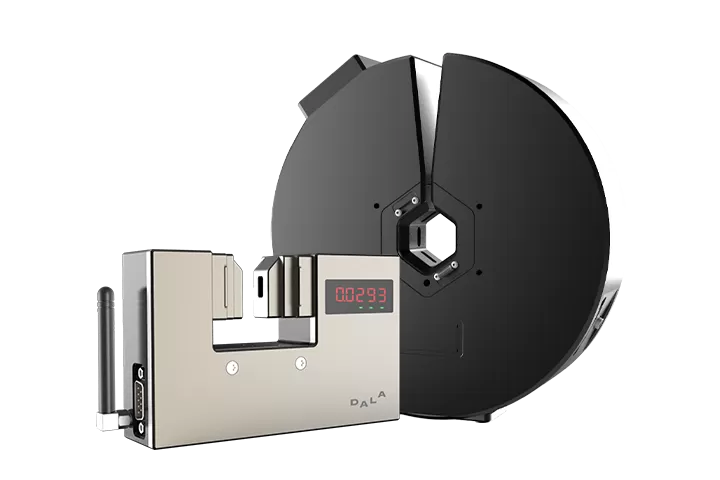

| Model | N3 | N300(networking type) | E3 |
| Measurement range | 0.015~1.00mm | 0.015~1.00mm | 0.015~1.00mm |
| Repeatability | ±0.05μm | ±0.1μm | ±0.05μm |
| Accuracy | ±(0.12+0.03%*D)μm | ±(0.3+0.03%*D)μm | ±(0.12+0.03%*D)μm |
| Size(mm) | 145*34*88 | 182*48*186 | |
| Axis | 1-axis | 3-axis | |
| Measurement data | diameter | diameter & Ovality | |
| Power supply | 24VDC ±5% ,Max.24W | ||
| Working temperature | 0~50°C | ||
| Storage temperature | 0~60°C | ||
| Relative humidity | Max85%, No condensation | ||
| Display | LEDdisplay | ||
| Communication port | RS485(Mod bus RTU)、CAN (CAN open) | ||
| Data collection & analysis | DMS1000|DS14ZT | ||
| Out-of-tolerance alarm | available | ||
Technical documents such as product manuals, datasheets and outline drawings
Answers to frequently asked questions about Micro Wire Laser Micrometer
It depends on the specific model. Different models support different measurement ranges, so the appropriate configuration should be selected based on the actual wire size.
Within the system’s effective depth of field, slight wire movement does not affect measurement accuracy. If the vibration exceeds this range, adding a guide roller is recommended.
Yes. Several DALA models support both outer diameter and ovality measurement, including the E3 ultra-fine wire gauge, F Series, TL-2000 Series, and TL-3000 Series.
