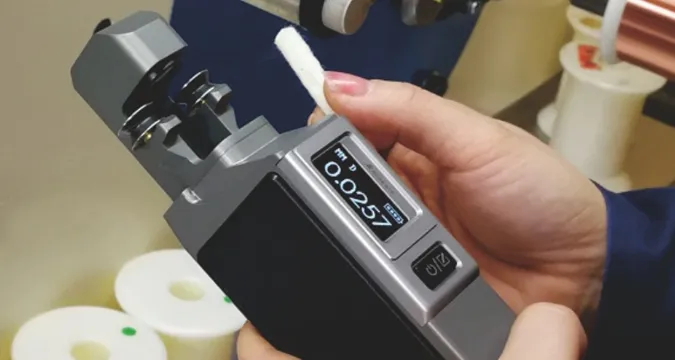

Compact measuring head, capable of operating in confined spaces.

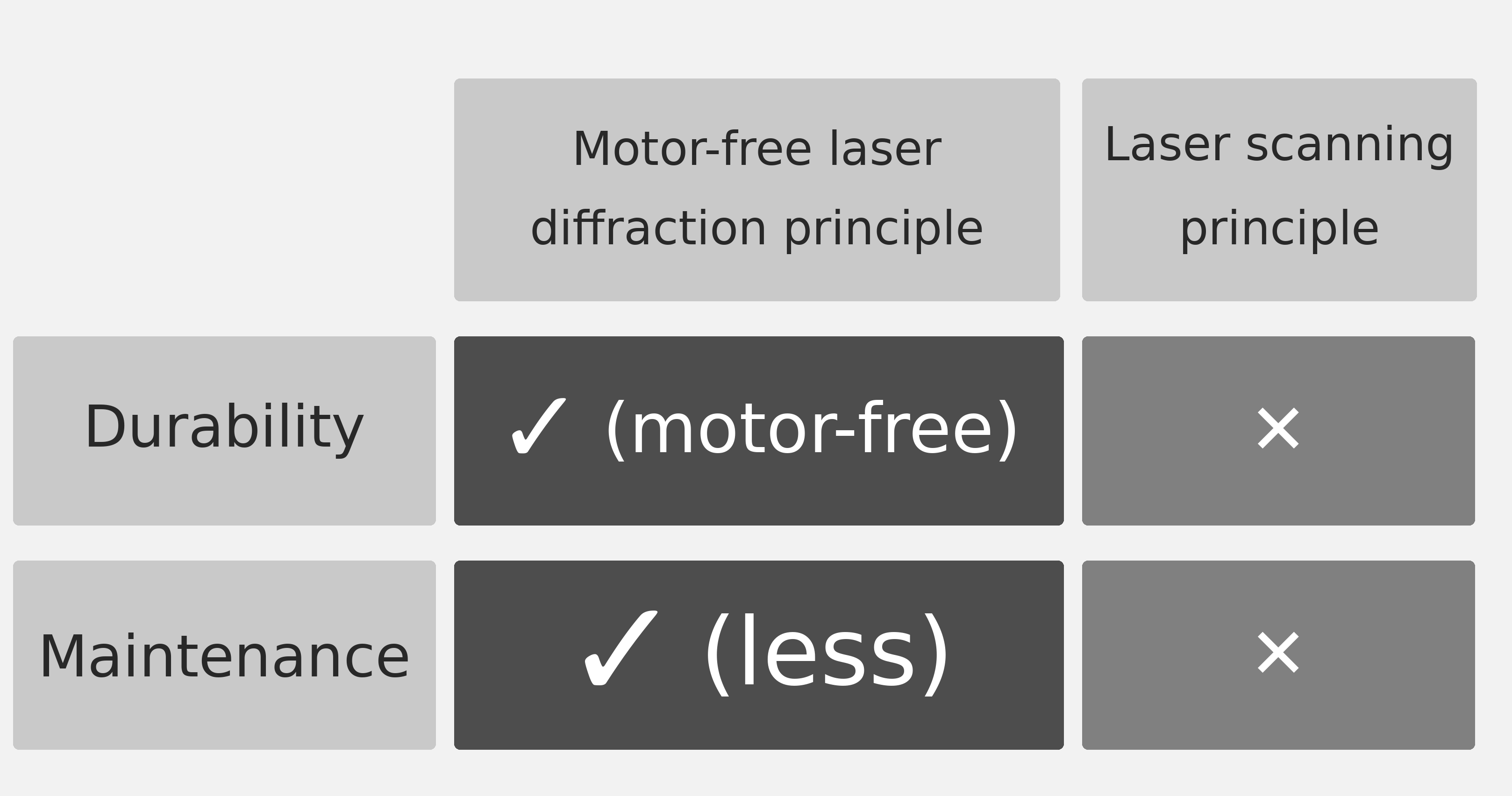

The instrument adopts the laser diffraction principle with a motor-free internal design, eliminating the need for motor maintenance or replacement and significantly reducing maintenance procedures.
With temperature compensation technology, measurement results are unaffected by ambient temperature.

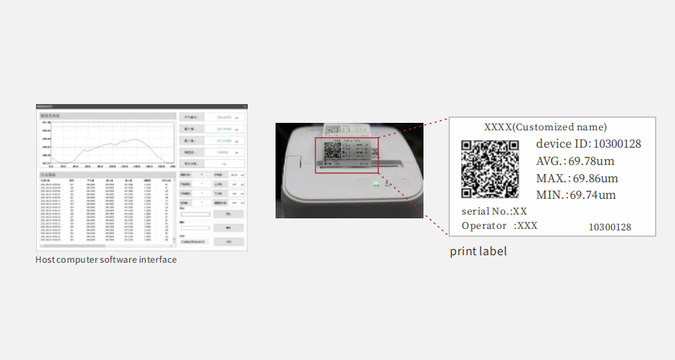

Can connect to PC software; also supports label printers with customizable content.
| Model | H1-S | H10-S |
| Measurement range | 0.01~0.3 & 0.015~1.00mm | 0.02~10.0mm |
| Repeatability | ±0.08μm | ±0.03μm |
| Accuracy | ±(0.15+0.03%*D)μm | ±0.5μm |
| Size(mm) | 208*53*60.1 | 214*65.6*58mm |
| Axis | 1-axis | 1-axis |
| Measurement data | diameter | diameter |
| Power supply | 9VDC±5%,Max. 5.4W | |
| Working temperature | 0~50 °C | |
| Storage temperature | 0~60 °C | |
| Relative humidity | Max85%，No condensation | |
| Display | LCD display | |
| Communication port | N/A | |
| Data collection & analysis | available | |
| Out-of-tolerance alarm | N/A | |
| Far-end display function | N/A | |
| Data storage & export | Available | |
| Power charge | Available | |
| Battery duration time | About 8h | |
