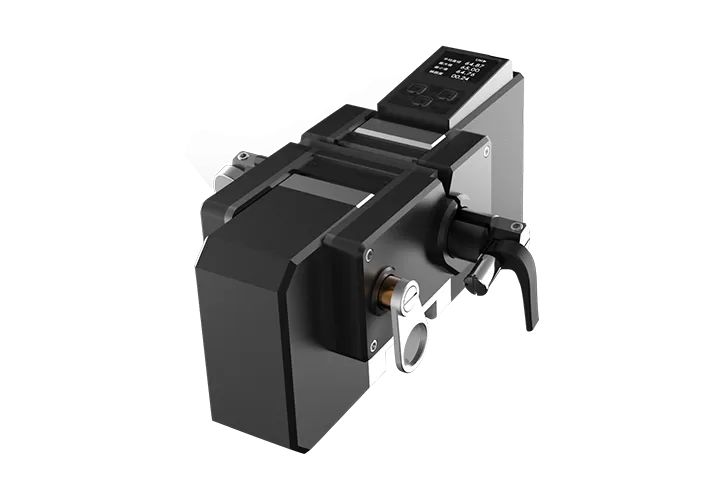

360° Ovality Gauge for Fine Wire

The D360 adopts breakthrough motor-free, diffractive optical technology to measure filament diameter and ovality. Through sophisticated mathematical calculations and a clever clamping mechanism, it ensures accurate measurement with every rotation, capturing the true data of the wire.

Measurement Range

0.005~1.000mm

Measurement Data

Diameter, Ovality

Measurement Principle

Fraunhofer Diffraction

Application Industries

Optical Fiber & Cable, Metal Wire Drawing

Downloads

Product Introduction

The D360 adopts a laser diffraction measurement solution. This solution calculates measurement values based on the principle of light diffraction, with key features including a simple structure and high precision. The product has a simple structure with no internal motor, offering high durability and hassle-free maintenance. It measures wires from 0.005 to 0.3 mm with a repeatability of ±0.01μm. It is suitable for offline measurement of various fine wires such as copper wire, enameled wire, tungsten wire, and stainless steel wire.

Key Features

Repeatability of 0.00001 mm

Built in with two high-performance DSP digital processing units that work in tandem. Based on calibration parameters written at the factory and combined with the laser diffraction principle, they enable real-time measurement with nanometer-level repeatability.

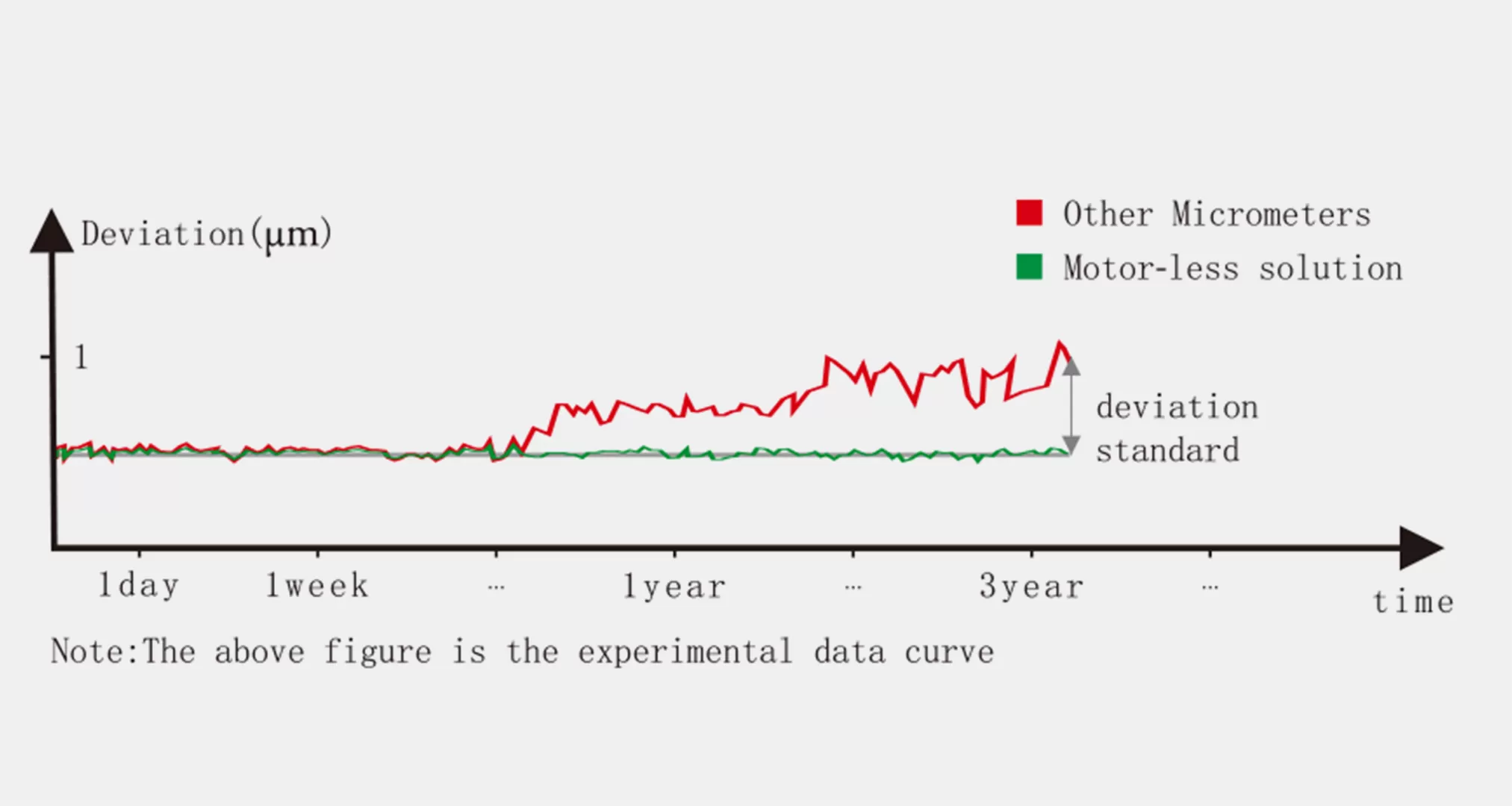

Accuracy is same over a long life service

D360 series integrated with good accuracy, durability and stability, and can be used for longterm without any worry.

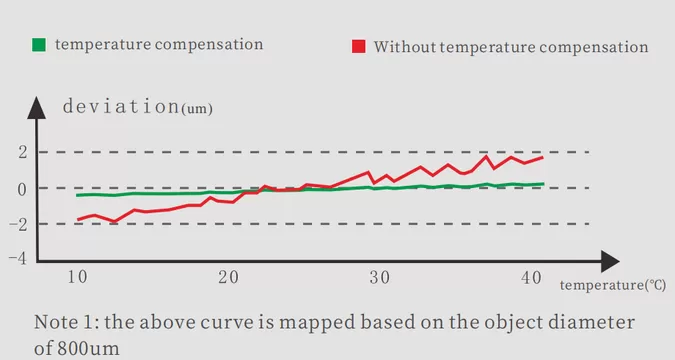

Insensitive to temperature change

Due to temperature compensation technology, the measurement result will not be affected by environmental temperature change.

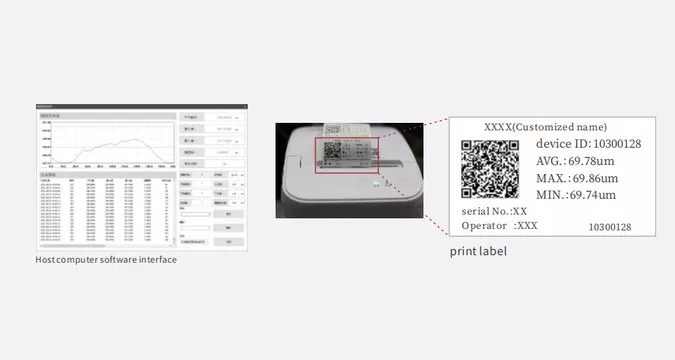

Print measurement results as labels

Each measurement can be printed as a label, and the printed contents can be customized.

Technical Parameters

Model	D360-1003	D360-101
Measurement Range	0.005~0.30mm	0.015~1.0mm
Repeatability	±0.01μm	±0.04μm
Accuracy	±(0.03+0.03*D)μm	±(0.1+0.03*D)μm
Size	27751112.5mm(Without WSR) 277200112.5mm	22751112.5mm(Without WSR) 227200112.5mm
Power supply	24VDC ±5% ,Max.5W
Working temperature	0~50°C
Storage temperature	0~60°C
Relative humidity	Max85%，no condensation
Display	LCD display
Communication port	RS485(Modbus RTU)
Data collection & analysis	Available
